    Класс ImageTransformationBasedCommand
    Предоставляет абстрактный базовый класс для команды обработки изображения, которая преобразует изображение.

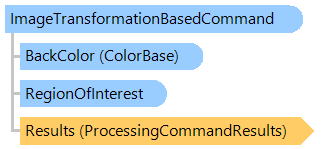

    Объектная модель
    ColorBase RegionOfInterest ProcessingCommandResults ImageTransformationBasedCommand
    Синтаксис
    'Declaration

    Public MustInherit Class ImageTransformationBasedCommand
       Inherits Vintasoft.Imaging.ImageProcessing.ProcessingCommandWithRegion



    Пример

    Вот C#/VB.NET код, который демонстрирует, как создать пользовательскую команду на основе преобразования изображений:

    ''' <summary>
    ''' Rotates an image by 90 degrees clockwise.
    ''' </summary>
    Public Class ImageOrthogonalClockwiseRotationCommand
        Inherits Vintasoft.Imaging.ImageProcessing.Transforms.ImageTransformationBasedCommand

        ''' <summary>
        ''' Initializes a new instance of the <see cref="ImageOrthogonalClockwiseRotationCommand"/> class.
        ''' </summary>
        Public Sub New()
            MyBase.New()
        End Sub



        ''' <summary>
        ''' Gets the name of the command.
        ''' </summary>
        Public Overrides ReadOnly Property Name() As String
            Get
                Return "Rotate image orthogonal clockwise."
            End Get
        End Property



        ''' <summary>
        ''' Creates a new <see cref="ImageOrthogonalClockwiseRotationCommand"/> that is a copy of the current instance.
        ''' </summary>
        ''' <returns>A new <see cref="ImageOrthogonalClockwiseRotationCommand"/> that is a copy of this instance.</returns>
        Public Overrides Function Clone() As Object
            Dim command As New ImageOrthogonalClockwiseRotationCommand()
            CopyTo(command)
            Return command
        End Function


        ''' <summary>
        ''' Creates the point transformation that is used for transforming points from
        ''' the destination image space to the source image space.
        ''' </summary>
        ''' <param name="sourceImageSize">Size of source image.</param>
        ''' <returns>The point transformation that is used for transforming points from
        ''' the destination image space to the source image space.</returns>
        Protected Overrides Function CreateTransform(sourceImageSize As Vintasoft.Imaging.VintasoftIntSize) As Vintasoft.Imaging.VintasoftPointTransform
            ' create transform, that defines image transformation
            Return New ClockwiseOrthogonalRotationTransform(sourceImageSize)
        End Function

        ''' <summary>
        ''' Returns size of result image.
        ''' </summary>
        ''' <param name="sourceImageSize">Size of source image.</param>
        ''' <returns>Size of result image.</returns>
        Protected Overrides Function GetResultImageSize(sourceImageSize As Vintasoft.Imaging.VintasoftIntSize) As Vintasoft.Imaging.VintasoftIntSize
            ' calculate transformed image size
            ' for this example it is just image width and heigth swap
            Return New Vintasoft.Imaging.VintasoftIntSize(sourceImageSize.Height, sourceImageSize.Width)
        End Function

    End Class

    ''' <summary>
    ''' Rotates the point, which is represented by <see cref="Vintasoft.Imaging.VintasoftPoint"/>
    ''' structure, by 90 degrees clockwise.
    ''' </summary>
    ''' <remarks>
    ''' For this example we need only one transform method, so other methods are not implemented.
    ''' </remarks>
    Public Class ClockwiseOrthogonalRotationTransform
        Inherits Vintasoft.Imaging.VintasoftPointTransform

        ''' <summary>
        ''' Coordinate system size.
        ''' </summary>
        Private _size As Vintasoft.Imaging.VintasoftIntSize



        ''' <summary>
        ''' Initializes a new instance of the <see cref="ClockwiseOrthogonalRotationTransform"/> class.
        ''' </summary>
        ''' <param name="size">Coordinate system size.</param>
        Public Sub New(size As Vintasoft.Imaging.VintasoftIntSize)
            _size = size
        End Sub



        ''' <summary>
        ''' Gets a value indicating whether this transform is invertible.
        ''' </summary>
        ''' <value>
        ''' <b>true</b> if this transform is invertible; otherwise, <b>false</b>.
        ''' </value>
        ''' <remarks>
        ''' Implementations of the <see cref="GetInverseTransform" /> method should throw an exception
        ''' if this transform is not invertible.
        ''' </remarks>
        ''' <seealso cref="GetInverseTransform" />
        Public Overrides ReadOnly Property IsInvertible() As Boolean
            Get
                Return False
            End Get
        End Property



        ''' <summary>
        ''' Returns the inverse transform.
        ''' </summary>
        Public Overrides Function GetInverseTransform() As Vintasoft.Imaging.VintasoftPointTransform
            Throw New System.NotImplementedException()
        End Function

        ''' <summary>
        ''' Transforms the specified point coordinates by this <see cref="Vintasoft.Imaging.VintasoftPointTransform"/>.
        ''' </summary>
        ''' <param name="x">The X coordinate to transform.</param>
        ''' <param name="y">The Y coordinate to transform.</param>
        Public Overrides Sub TransformPoint(ByRef x As Double, ByRef y As Double)
            Dim oldX As Double = x
            x = y
            y = _size.Height - oldX
        End Sub

        ''' <summary>
        ''' Transforms the specified point by this <see cref="Vintasoft.Imaging.VintasoftPointScaleTransform"/> and
        ''' returns the result.
        ''' </summary>
        ''' <param name="point">The point to transform.</param>
        ''' <returns>
        ''' The result of transforming <i>point</i> by this <see cref="Vintasoft.Imaging.PointFScaleTransform"/>.
        ''' </returns>
        Public Overrides Function TransformPoint(point As Vintasoft.Imaging.VintasoftPoint) As Vintasoft.Imaging.VintasoftPoint
            Throw New System.NotImplementedException()
        End Function

        ''' <summary>
        ''' Transforms the specified points by this <see cref="Vintasoft.Imaging.VintasoftPointScaleTransform"/>.
        ''' </summary>
        ''' <param name="points">The <i>points</i> to transform.
        ''' The original points in the array are replaced by their transformed values.</param>
        Public Overrides Sub TransformPoints(points As Vintasoft.Imaging.VintasoftPoint())
            Throw New System.NotImplementedException()
        End Sub

        ''' <summary>
        ''' Transforms the specified vector coordinates by this <see cref="Vintasoft.Imaging.VintasoftPointTransform"/>.
        ''' </summary>
        ''' <param name="x">The X coordinate to transform.</param>
        ''' <param name="y">The Y coordinate to transform.</param>
        Public Overrides Sub TransformVector(ByRef x As Double, ByRef y As Double)
            Throw New System.NotImplementedException()
        End Sub

        ''' <summary>
        ''' Transforms the specified vector by this <see cref="Vintasoft.Imaging.VintasoftPointScaleTransform"/>.
        ''' </summary>
        ''' <param name="vector">The vector to transform.</param>
        ''' <returns>
        ''' The result of transforming <i>vector</i> by this <see cref="Vintasoft.Imaging.VintasoftPointScaleTransform"/>.
        ''' </returns>
        Public Overrides Function TransformVector(vector As Vintasoft.Imaging.VintasoftPoint) As Vintasoft.Imaging.VintasoftPoint
            Throw New System.NotImplementedException()
        End Function

        ''' <summary>
        ''' Transforms the specified vectors by this <see cref="Vintasoft.Imaging.VintasoftPointScaleTransform"/>.
        ''' </summary>
        ''' <param name="vectors">The <i>vectors</i> to transform.
        ''' The original vectors in the array are replaced by their transformed values.</param>
        Public Overrides Sub TransformVectors(vectors As Vintasoft.Imaging.VintasoftPoint())
            Throw New System.NotImplementedException()
        End Sub

    End Class


    /// <summary>
    /// Rotates an image by 90 degrees clockwise.
    /// </summary>
    public class ImageOrthogonalClockwiseRotationCommand :
        Vintasoft.Imaging.ImageProcessing.Transforms.ImageTransformationBasedCommand
    {

        /// <summary>
        /// Initializes a new instance of the <see cref="ImageOrthogonalClockwiseRotationCommand"/> class.
        /// </summary>
        public ImageOrthogonalClockwiseRotationCommand()
            : base()
        {
        }



        /// <summary>
         /// Gets the name of the command.
         /// </summary>
        public override string Name
        {
            get
            {
                return "Rotate image orthogonal clockwise.";
            }
        }



        /// <summary>
        /// Creates a new <see cref="ImageOrthogonalClockwiseRotationCommand"/> that is a copy of the current instance.
        /// </summary>
        /// <returns>A new <see cref="ImageOrthogonalClockwiseRotationCommand"/> that is a copy of this instance.</returns>
        public override object Clone()
        {
            ImageOrthogonalClockwiseRotationCommand command = new ImageOrthogonalClockwiseRotationCommand();
            CopyTo(command);
            return command;
        }


        /// <summary>
        /// Creates the point transformation that is used for transforming points from
        /// the destination image space to the source image space.
        /// </summary>
        /// <param name="sourceImageSize">Size of source image.</param>
        /// <returns>The point transformation that is used for transforming points from
        /// the destination image space to the source image space.</returns>
        protected override Vintasoft.Imaging.VintasoftPointTransform CreateTransform(Vintasoft.Imaging.VintasoftIntSize sourceImageSize)
        {
            // create transform, that defines image transformation
            return new ClockwiseOrthogonalRotationTransform(sourceImageSize);
        }

        /// <summary>
        /// Returns size of result image.
        /// </summary>
        /// <param name="sourceImageSize">Size of source image.</param>
        /// <returns>Size of result image.</returns>
        protected override Vintasoft.Imaging.VintasoftIntSize GetResultImageSize(Vintasoft.Imaging.VintasoftIntSize sourceImageSize)
        {
            // calculate transformed image size
            // for this example it is just image width and heigth swap
            return new Vintasoft.Imaging.VintasoftIntSize(sourceImageSize.Height, sourceImageSize.Width);
        }

    }

    /// <summary>
    /// Rotates the point, which is represented by <see cref="Vintasoft.Imaging.VintasoftPoint"/>
    /// structure, by 90 degrees clockwise.
    /// </summary>
    /// <remarks>
    /// For this example we need only one transform method, so other methods are not implemented.
    /// </remarks>
    public class ClockwiseOrthogonalRotationTransform : Vintasoft.Imaging.VintasoftPointTransform
    {

        /// <summary>
        /// Coordinate system size.
        /// </summary>
        Vintasoft.Imaging.VintasoftIntSize _size;



        /// <summary>
        /// Initializes a new instance of the <see cref="ClockwiseOrthogonalRotationTransform"/> class.
        /// </summary>
        /// <param name="size">Coordinate system size.</param>
        public ClockwiseOrthogonalRotationTransform(Vintasoft.Imaging.VintasoftIntSize size)
        {
            _size = size;
        }



        /// <summary>
        /// Gets a value indicating whether this transform is invertible.
        /// </summary>
        /// <value>
        /// <b>true</b> if this transform is invertible; otherwise, <b>false</b>.
        /// </value>
        /// <remarks>
        /// Implementations of the <see cref="GetInverseTransform" /> method should throw an exception
        /// if this transform is not invertible.
        /// </remarks>
        /// <seealso cref="GetInverseTransform" />
        public override bool IsInvertible
        {
            get
            {
                return false;
            }
        }



        /// <summary>
        /// Returns the inverse transform.
        /// </summary>
        public override Vintasoft.Imaging.VintasoftPointTransform GetInverseTransform()
        {
            throw new System.NotImplementedException();
        }

        /// <summary>
        /// Transforms the specified point coordinates by this <see cref="Vintasoft.Imaging.VintasoftPointTransform"/>.
        /// </summary>
        /// <param name="x">The X coordinate to transform.</param>
        /// <param name="y">The Y coordinate to transform.</param>
        public override void TransformPoint(ref double x, ref double y)
        {
            double oldX = x;
            x = y;
            y = _size.Height - oldX;
        }

        /// <summary>
        /// Transforms the specified point by this <see cref="Vintasoft.Imaging.VintasoftPointScaleTransform"/> and
        /// returns the result.
        /// </summary>
        /// <param name="point">The point to transform.</param>
        /// <returns>
        /// The result of transforming <i>point</i> by this <see cref="Vintasoft.Imaging.PointFScaleTransform"/>.
        /// </returns>
        public override Vintasoft.Imaging.VintasoftPoint TransformPoint(Vintasoft.Imaging.VintasoftPoint point)
        {
            throw new System.NotImplementedException();
        }

        /// <summary>
        /// Transforms the specified points by this <see cref="Vintasoft.Imaging.VintasoftPointScaleTransform"/>.
        /// </summary>
        /// <param name="points">The <i>points</i> to transform.
        /// The original points in the array are replaced by their transformed values.</param>
        public override void TransformPoints(Vintasoft.Imaging.VintasoftPoint[] points)
        {
            throw new System.NotImplementedException();
        }

        /// <summary>
        /// Transforms the specified vector coordinates by this <see cref="Vintasoft.Imaging.VintasoftPointTransform"/>.
        /// </summary>
        /// <param name="x">The X coordinate to transform.</param>
        /// <param name="y">The Y coordinate to transform.</param>
        public override void TransformVector(ref double x, ref double y)
        {
            throw new System.NotImplementedException();
        }

        /// <summary>
        /// Transforms the specified vector by this <see cref="Vintasoft.Imaging.VintasoftPointScaleTransform"/>.
        /// </summary>
        /// <param name="vector">The vector to transform.</param>
        /// <returns>
        /// The result of transforming <i>vector</i> by this <see cref="Vintasoft.Imaging.VintasoftPointScaleTransform"/>.
        /// </returns>
        public override Vintasoft.Imaging.VintasoftPoint TransformVector(Vintasoft.Imaging.VintasoftPoint vector)
        {
            throw new System.NotImplementedException();
        }

        /// <summary>
        /// Transforms the specified vectors by this <see cref="Vintasoft.Imaging.VintasoftPointScaleTransform"/>.
        /// </summary>
        /// <param name="vectors">The <i>vectors</i> to transform.
        /// The original vectors in the array are replaced by their transformed values.</param>
        public override void TransformVectors(Vintasoft.Imaging.VintasoftPoint[] vectors)
        {
            throw new System.NotImplementedException();
        }

    }



    Иерархия наследования
    Требования

    Целевые платформы: .NET 9; .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5

    Смотрите также
