VintaSoft Imaging .NET SDK 14.1: Документация для .NET разработчика
Vintasoft.Imaging.Dicom.Mpr Namespace / MprDicomImagePlanarSlice Class
Члены типа Объект Синтаксис Example Иерархия Требования Смотрите также
    Класс MprDicomImagePlanarSlice
    Представляет плоский срез MPR, полученный из кадра DICOM.

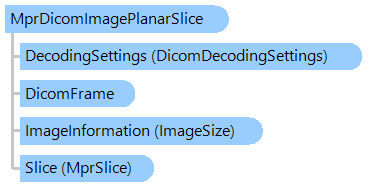

    Объектная модель
    DicomFrame DicomDecodingSettings MprSlice ImageSize MprDicomImagePlanarSlice
    Синтаксис
    'Declaration

    Public Class MprDicomImagePlanarSlice
       Inherits MprImagePlanarSlice



    Пример

    Вот C#/VB.NET код, который демонстрирует, как создать исходные данные для DICOM MPR.

    ''' <summary>
    ''' Creates the <see cref="Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice"/> for DICOM MPR.
    ''' </summary>
    ''' <param name="sourceDicomFiles">The source DICOM files.</param>
    ''' <returns>
    ''' The source data for DICOM MPR.
    ''' </returns>
    ''' <exception cref="System.ArgumentNullException">Thrown if <i>sourceDicomFiles</i> is <b>null</b>.</exception>
    Public Shared Function CreateSourceDicomFrames(ParamArray sourceDicomFiles As Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile()) As Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice()
        ' if source DICOM files are not specified
        If sourceDicomFiles Is Nothing Then
            Throw New System.ArgumentNullException()
        End If

        ' a list of source MPR slices
        Dim sourceMprSlices As New System.Collections.Generic.List(Of Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice)()

        ' for each DICOM file
        For Each sourceDicomFile As Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile In sourceDicomFiles
            ' for each DICOM frame
            For Each frame As Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFrame In sourceDicomFile.Pages
                ' create MPR slice from DICOM frame
                sourceMprSlices.Add(New Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice(frame))
            Next
        Next

        Return sourceMprSlices.ToArray()
    End Function


    /// <summary>
    /// Creates the <see cref="Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice"/> for DICOM MPR.
    /// </summary>
    /// <param name="sourceDicomFiles">The source DICOM files.</param>
    /// <returns>
    /// The source data for DICOM MPR.
    /// </returns>
    /// <exception cref="System.ArgumentNullException">Thrown if <i>sourceDicomFiles</i> is <b>null</b>.</exception>
    public static Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice[] CreateSourceDicomFrames(
        params Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile[] sourceDicomFiles)
    {
        // if source DICOM files are not specified
        if (sourceDicomFiles == null)
            throw new System.ArgumentNullException();

        // a list of source MPR slices
        System.Collections.Generic.List<Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice> sourceMprSlices =
            new System.Collections.Generic.List<Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice>();

        // for each DICOM file
        foreach (Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFile sourceDicomFile in sourceDicomFiles)
        {
            // for each DICOM frame
            foreach (Vintasoft.Imaging.Codecs.ImageFiles.Dicom.DicomFrame frame in sourceDicomFile.Pages)
            {
                // create MPR slice from DICOM frame
                sourceMprSlices.Add(new Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice(frame));
            }
        }

        return sourceMprSlices.ToArray();
    }



    Иерархия наследования

    System.Object
       Vintasoft.Imaging.Dicom.Mpr.MprImageSlice
          Vintasoft.Imaging.Dicom.Mpr.MprImagePlanarSlice
             Vintasoft.Imaging.Dicom.Mpr.MprDicomImagePlanarSlice

    Требования

    Целевые платформы: .NET 9; .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
