    Класс ISO15415QualityTestManager
    В этом разделе
    Предоставляет менеджер теста качества печати штрих-кодов ISO/IEC 15415 для двумерных штрих-кодов.

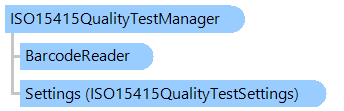

    Объектная модель
    ISO15415QualityTestSettings BarcodeReader ISO15415QualityTestManager
    Синтаксис
    'Declaration

    Public Class ISO15415QualityTestManager


    public class ISO15415QualityTestManager


    public __gc class ISO15415QualityTestManager


    public ref class ISO15415QualityTestManager


    Пример

    Вот пример, демонстрирующий, как проверить качество печати двумерных штрих-кодов:



    Imports System.IO

    Imports Vintasoft.Barcode
    Imports Vintasoft.Barcode.QualityTests

    ''' <summary>
    ''' Shows how to test print quality of 2D barcodes using ISO15415QualityTestManger class.
    ''' </summary>
    Class ISO15415QualityTestManagerExample
        ''' <summary>
        ''' Runs the quality test.
        ''' </summary>
        Public Shared Sub Test(barcode As BarcodeType, files As String())
            Using testManager As New ISO15415QualityTestManager(barcode)
                ' apertue factor = 0.8
                testManager.ApertureFactor = 0.8

                ' barcode cell size (pixels) = undefined
                testManager.BarcodeCellAvgSize = 0

                For Each file As String In files
                    Console.Write(Path.GetFileName(file) & ": ")
                    Dim results As ISO15415QualityTest() = testManager.ExecuteTest(file)

                    If results.Length > 1 Then
                        Throw New Exception("Unexpected barcode count.")
                    End If

                    If results.Length = 0 Then
                        Console.WriteLine("No barcode found.")
                    Else
                        Dim result As ISO15415QualityTest = results(0)
                        Console.Write("Found = " & result.BarcodeInfo.Value & "; ")
                        Console.WriteLine("Scan Grade = " & GradeToString(result.ScanGrade))
                    End If
                Next
            End Using
        End Sub

        ''' <summary>
        ''' Converts ISO15415 quality grade into string value.
        ''' </summary>
        Private Shared Function GradeToString(grade As ISO15415QualityGrade) As String
            Return String.Format("{0}({1})", CInt(grade).ToString(), grade)
        End Function
    End Class



    using System;

    using System.IO;

    using Vintasoft.Barcode;
    using Vintasoft.Barcode.QualityTests;

    /// <summary>
    /// Shows how to test print quality of 2D barcodes using ISO15415QualityTestManger class.
    /// </summary>
    class ISO15415QualityTestManagerExample
    {
        /// <summary>
        /// Runs the quality test.
        /// </summary>
        public static void Test(BarcodeType barcode, string[] files)
        {
            using (ISO15415QualityTestManager testManager = new ISO15415QualityTestManager(barcode))
            {
                // apertue factor = 0.8
                testManager.ApertureFactor = 0.8;

                // barcode cell size (pixels) = undefined
                testManager.BarcodeCellAvgSize = 0;

                foreach (string file in files)
                {
                    Console.Write(Path.GetFileName(file) + ": ");
                    ISO15415QualityTest[] results = testManager.ExecuteTest(file);

                    if (results.Length > 1)
                        throw new Exception("Unexpected barcode count.");

                    if (results.Length == 0)
                    {
                        Console.WriteLine("No barcode found.");
                    }
                    else
                    {
                        ISO15415QualityTest result = results[0];
                        Console.Write("Found = " + result.BarcodeInfo.Value + "; ");
                        Console.WriteLine("Scan Grade = " + GradeToString(result.ScanGrade));
                    }
                }
            }
        }

        /// <summary>
        /// Converts ISO15415 quality grade into string value.
        /// </summary>
        private static string GradeToString(ISO15415QualityGrade grade)
        {
            return string.Format("{0}({1})", ((int)grade).ToString(), grade);
        }
    }



    Иерархия наследования

    System.Object
       Vintasoft.Barcode.QualityTests.ISO15415QualityTestManager

    Требования

    Целевые платформы: .NET 10; .NET 9; .NET 8; .NET 7; .NET 6; .NET Framework 4.8, 4.7, 4.6, 4.5, 4.0, 3.5
